Ring Hammer Crusher Equipment Used In Thermoelectricity Cement Coal

Name: Ring Hammer Crusher Equipment Used In Thermoelectricity Cement Coal
Brand: Huaji
SKU: Huaji
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (198 reviews)

Product Details

Place of Origin: China

Brand Name: Huaji

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:

Name:	Coarse And Medium Crushing Equipment	Production Capacity:	Various
Applicable Materials:	Iron Ore, Steel Slag, Phosphate Rock	Application:	Highway, Railroad, Chemical Industry
Feature:	High Efficiency	Key Selling Points:	High Yield Rate ,Low Operation Cost

Name:	Coarse And Medium Crushing Equipment
Production Capacity:	Various
Applicable Materials:	Iron Ore, Steel Slag, Phosphate Rock
Application:	Highway, Railroad, Chemical Industry
Feature:	High Efficiency
Key Selling Points:	High Yield Rate ,Low Operation Cost

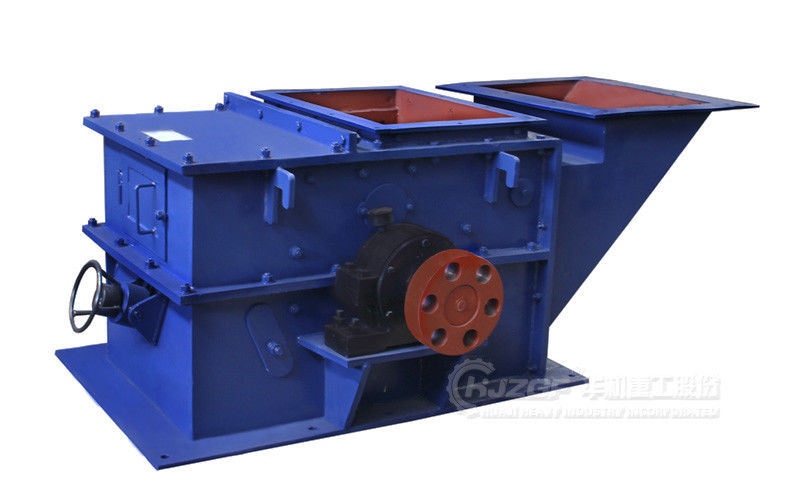

Ring Hammer Crusher Equipment Used In Thermoelectricity Cement Coal

Ring Hammer Crusher product description

Ring Hammer Crusher is suitable for crushing various medium-hardness materials with compressive strength not more than 150Mpa and water not more than 12%, such as coal, coal gangue, coke, slag, red sandstone, shale, loose limestone, etc. It has the features of simple structure, high efficiency and energy saving, low noise and dust. It is characterized by simple structure, large crushing ratio, high efficiency and energy saving, low noise and low dust. It can be widely used in thermoelectricity, cement, coal, metallurgy, building materials, highway, combustion and chemical industries.

Ring Hammer Crusher working principle

The main part of the ring hammer crusher is the rotor with hammer head, which is composed of spindle, turntable, pin and hammer head. The rotor is driven by the motor to rotate at high speed in the crushing chamber, the material enters into the crushing chamber from the inlet, and is struck by the high-speed movement of the hammer head, impacting, shearing and grinding the material to be crushed. In the lower part of the rotor, there is a screen plate, the crushed materials smaller than the size of the screen hole particles discharged through the screen plate, larger than the size of the screen hole material blocked on the screen plate to continue to be struck by the hammer and grinding, and ultimately reach the size of the final through the screen plate discharged out of the machine, according to the user's requirements to customize the grate gap, change the size of the material, in order to meet the needs of different users.

Ring Hammer Crusher Technical Parameters

Model	Rotor Diameter (mm)	Rotor length (mm)	Spindle speed (r/min)	Feed size (mm)	Output granularity (mm)	production capacity (t/h)	Motor power (Kw)
PCH0404	400	400	970	≤200	≤30	16-25	11
PCH0604	600	400	970	≤200	≤30	22-23	15
PCH0606	600	600	970	≤200	≤30	30-60	30
PCH0808	800	800	980	≤200	≤30	75-105	45
PCH1010	1000	1000	740	≤300	≤30	160-245	90
PCH1016	1000	1600	740	≤300	≤30	300-500	155
PCH1216	1200	1600	740	≤400	≤30	500-800	355
PCH1221	1210	2100	740	≤400	≤30	800-1000	400
