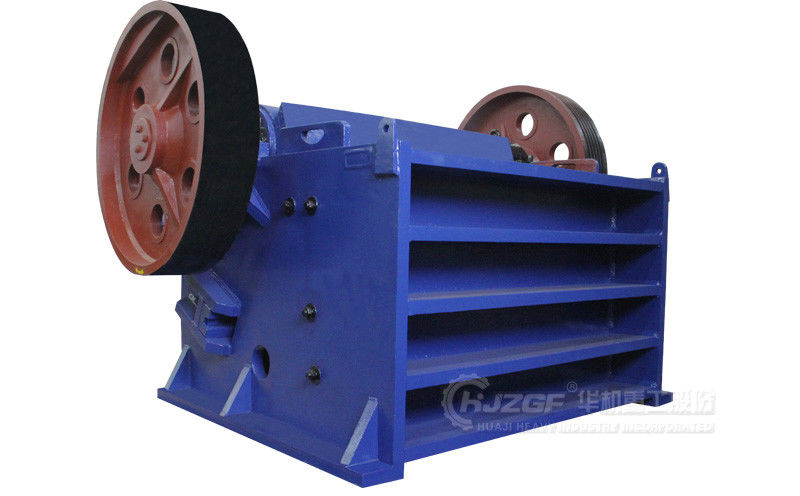

High Efficiency Fine Jaw Crusher Machine Low Power Consumption

Name: High Efficiency Fine Jaw Crusher Machine Low Power Consumption
Brand: Huaji
SKU: Huaji
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (162 reviews)

Product Details

Place of Origin: China

Brand Name: Huaji

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:

High Efficiency Fine Jaw Crusher Machine Low Power Consumption

Fine Jaw Crusher product description

Fine Jaw Crusher is suitable for crushing hard materials (compressive strength <300Mpa), such as: iron ore, steel slag, phosphate rock, copper ore, silica ore, limestone, quartzite, ceramics and its hardness equivalent to the coarse and medium crushing operations of solid materials, such as a variety of beneficiation plant in the middle of the block of material in the fine crushing, the cement plant in the middle of the block of material in the fine crushing and so on, has the advantages of a large crushing ratio, the use of low maintenance costs, low power consumption, reliable performance and so on.

Fine Jaw Crusher working principle

Fine Jaw Crusher is driven by the motor through the belt and pulley to drive the eccentric shaft to make the movable jaw move up and down, when the movable jaw rises, the angle between the elbow plate and the movable jaw becomes larger, so that the movable jaw plate to the fixed jaw plate close to the formation of the crushing cavity, then the materials entering the crushing cavity are crushed by extrusion; when the movable jaw downward, the angle between the elbow plate and the movable jaw becomes smaller, and the movable jaw plate, under the action of the tie rod and the spring, leaves the fixed jaw plate, and the crushed materials are discharged from the bottom of the crushing cavity, so that the movable jaw is continuously driven by the motor to make the cycle of operation to crush the materials.

Fine Jaw Crusher Technical Parameters

Model	Inlet size (mm)	Feed size (mm)	Output granularity (mm)	production capacity (t/h)	Motor power (Kw)
PEX-250×750	750×250	210	25-60	15-35	22
PEX-250×1000	1000×250	210	25-60	16-45	30
PEX-250×1200	1200×250	210	25-60	20-60	37
PEX-300×1300	1300×300	260	25-90	25-90	45
PEX-500×1500	1500×500	450	25-90	30-120	75
PEX-500×2000	2000×500	450	25-100	40-120	90
