High Efficiency Heavy Hammer Crusher Equipment Easy To Dismantle And Install

Name: High Efficiency Heavy Hammer Crusher Equipment Easy To Dismantle And Install
Brand: Huaji
SKU: Huaji
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (140 reviews)

Product Details

Place of Origin: China

Brand Name: Huaji

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:

Name:	Coarse And Medium Crushing Equipment	Production Capacity:	Various
Applicable Materials:	Iron Ore, Steel Slag, Phosphate Rock	Application:	Highway, Railroad, Chemical Industry
Feature:	High Efficiency	Key Selling Points:	High Yield Rate ,Low Operation Cost

Name:	Coarse And Medium Crushing Equipment
Production Capacity:	Various
Applicable Materials:	Iron Ore, Steel Slag, Phosphate Rock
Application:	Highway, Railroad, Chemical Industry
Feature:	High Efficiency
Key Selling Points:	High Yield Rate ,Low Operation Cost

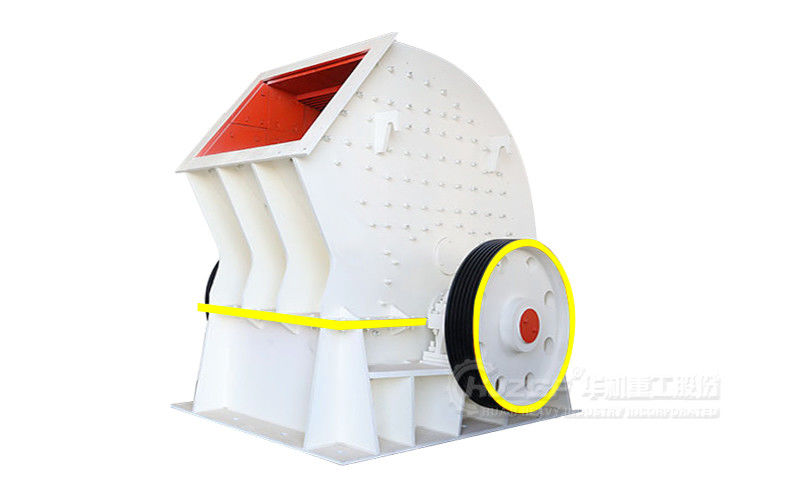

High Efficiency Heavy Hammer Crusher Equipment Easy To Dismantle And Install

Heavy Hammer Crusher product description

Heavy hammer crusher combines hammer crushing and impact crushing in one machine, which is suitable for coarse and medium crushing operation of materials below medium hardness. This equipment reduces the number of hammer heads, so it reduces the over-crushing rate of stone materials, improves the throughput of stone materials, reduces the amount of stone powder, and saves the cost of equipment wear and tear. It increases the volume of hammer head and prolongs the wear resistance of hammer head. Both ends of the heavy hammer crusher are equipped with heavy-duty pulleys, which stabilizes the inertia when the equipment is running and reduces the power consumption. And the wear-resistant sheath is installed around the rotor disk, which is easy to dismantle and install, so that the stone will not directly wear the rotor disk, which greatly improves the use cycle of the rotor.

Therefore, the heavy hammer crusher has the characteristics of low energy consumption, low investment, environmental protection, high efficiency, etc. It is suitable for mining, building materials, highway, railroad, chemical industry and other industries.

Heavy Hammer Crusher working principle

When working, open the electric control system, start the main motor through the triangle belt belt motors within the rotor, heavy feeder will be chunks of material into the crusher, chunks of material into the crushing chamber by the hammer head impact, larger than the gap between the shed bars of the ore by the high-speed rotation of the hammer head strong blow, crushed or thrown up the ore, thrown up the ore impact to the counterattack lining plate or self-phase collision and crushed again, less than the size of the grate slit from the lower part of the cavity discharged.

Heavy Hammer Crusher Technical Parameters

Model	Rotor size (mm)	Inlet size (mm)	Feed size (mm)	processing capability (t/h)	Motor power (Kw)
PCZ1410	1400×1000	1020×750	≤500	180-230	90×2
PCZ1612	1600×1200	1150×1000	≤600	260-350	132×2
PCZ1614	1600×1400	1400×1000	≤600	380-550	200×2
PCZ1816	1800×1600	1640×1300	≤650	600-850	250×2
PCZ1820	1800×2000	1980×1300	≤650	700-1000	400×2
PCZ2020	2000×2000	1950×1600	≤800	900-1500	500×2
PCZ2225	2200×2500	2100×2300	≤1200	1500-3000	700×2
