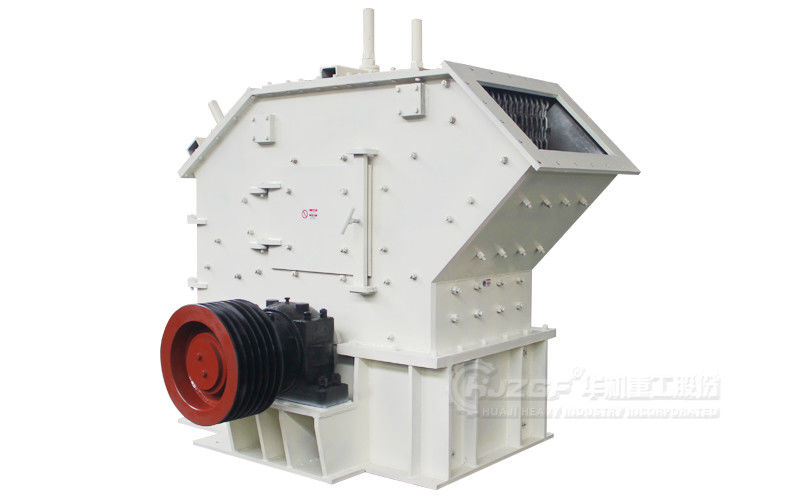

High Speed Impact Hammer Crusher Equipment For Limestone Dolomite

Name: High Speed Impact Hammer Crusher Equipment For Limestone Dolomite
Brand: Huaji
SKU: Huaji
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (157 reviews)

Product Details

Place of Origin: China

Brand Name: Huaji

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:

Name:	Coarse And Medium Crushing Equipment	Production Capacity:	Various
Applicable Materials:	Iron Ore, Steel Slag, Phosphate Rock	Application:	Highway, Railroad, Chemical Industry
Feature:	High Efficiency	Key Selling Points:	High Yield Rate ,Low Operation Cost

Name:	Coarse And Medium Crushing Equipment
Production Capacity:	Various
Applicable Materials:	Iron Ore, Steel Slag, Phosphate Rock
Application:	Highway, Railroad, Chemical Industry
Feature:	High Efficiency
Key Selling Points:	High Yield Rate ,Low Operation Cost

High Speed Impact Hammer Crusher Equipment For Limestone Dolomite

Impact Hammer Crusher product description

Impact hammer crusher is suitable for crushing hard materials with compressive strength less than 250Mpa and medium-hard materials, such as limestone, dolomite, shale, gypsum, gypsum ore, gravel, gangue and other hard and brittle materials. It has the features of large crushing ratio, even granularity of discharged material, etc. And it can choose and book the screen plate according to the different needs of the users, which is the more ideal crushing equipment for mining, cement, building materials and other industries.

Impact Hammer Crusher working principle

Impact hammer crusher spindle installed with a number of regularly distributed hammerheads, with the turntable and through the hammer to form a rotor, through the motor, belt drive spindle, so that the rotor rotates, hammers are rotated by the centrifugal force generated by the centrifugal force in all directions to unfold the large pieces of material from the inlet into the crushing chamber, the high-speed rotation of the hammerheads to hit the material to meet the requirements of the crusher by the lower castor gap in the lower part of the discharged, not to meet the requirements of the material to stay in the crushing chamber, by the hammers and the material to hit each other repeatedly, until reach the fineness of the discharged out of the machine.

Impact Hammer Crusher Technical Parameters

Model	Rotor Diameter (mm)	Rotor length (mm)	Spindle speed (r/min)	Feed size (mm)	Output granularity (mm)	production capacity (t/h)	Motor power (Kw)
PC0606	600	600	960	≤400	10-100	15-60	30
PC0808	800	800	870	≤500	10-100	25-80	45
PC0810	800	1000	870	≤500	10-100	40-100	75
PC1010	1000	1000	740	≤600	12-100	60-150	90
PC1013	1000	1300	740	≤600	12-100	90-200	110
PC1213	1200	1300	520	≤600	12-120	12-260	160
PC1414	1400	1400	450	≤700	12-120	160-350	250
PC1616	1600	1600	390	≤700	12-150	190-460	400
