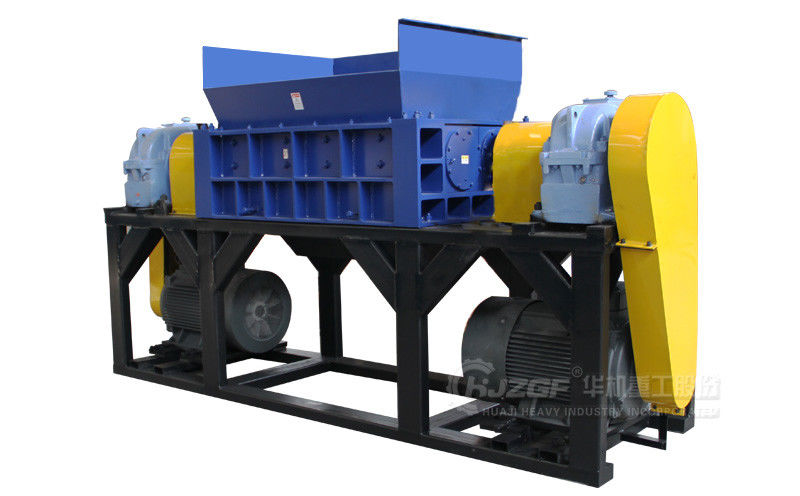

Double Shaft Shredder product description
2PGS series double shaft shredder is our technical staff in the introduction and absorption of foreign advanced technology on the basis of accumulated years of manufacturing experience, independent research and development design and production of an environmentally friendly waste reuse regeneration shredding equipment, with uniform discharge, high shredding efficiency, high yield, reliable performance and other advantages, can be widely used in waste recycling recycling industry.
Double shaft shredder knives are made of special alloy steel (high-speed steel or tool steel) through a special processing technology, with good wear resistance, high strength, repairable and other characteristics, tooth knife in the thickness, tooth shape, arrangement order and other aspects of the design of a unique, strong shear force to improve the shredding efficiency; drive part of the drive using heavy-duty planetary gear reducer drive, with a low rotational speed, torque, low noise and other characteristics; large angle hexagonal column of the Strong rotary shaft with large angle hexagonal column, thus it can be put into large raw materials with confidence; the electrical part is controlled by PLC program and touch screen, with automatic detection of overload protection and reversing functions.
Applicable waste materials
1,Vehicle fittings: waste tires, wheel hubs, oil filters, engine shells, waste copper and aluminum parts and thickness of less than 10mm waste steel plates and scrap iron forklift pallets.
2,Drum products: plastic drums, metal drums, paint drums, IBC drums, garbage cans, packaging drums.
3,Metal products: aluminum profiles, cans, metal cans, scrap aluminum skin, scrap steel materials, iron sheets, copper sheets and other waste metal materials.
4, Garbage: domestic garbage, kitchen garbage, industrial garbage, garden garbage.
5,Plastic products: plastic pipes, fittings, plastic bottles, plastic frames, plastic blocks, plastic cans, rolls of film, woven bags.
6, wood and paper: tree branches, tree stumps, building templates, wood blocks, newspapers, cardboard, corrugated paper, copy paper.
7, electronic and electrical appliances: refrigerator shells, circuit boards, computer shells, CD disks, waste TV sets, washing machines.
8,Glass products: glass wool, glass cups, fiberglass products.
9,Medical waste: small medical devices, clinical waste, pharmaceutical waste, infectious waste, all kinds of plastic waste, latex material waste, syringe type waste.
10,Hazardous materials: solid hazardous waste, drums containing pollutants, mixed liquid-solid waste, aerosols, industrial sludge, all kinds of radioactive hazardous waste, nuclear fuel rods.
Double Shaft Shredder working principle
Double shaft shredder is the use of two wear-resistant shredding rollers, the work of the two shredding rollers to implement the relative rotation between the two, forming a V-shape shredding cavity, resulting in the shear force to break the material, the material into the gap between the two rollers (V-shape crushing cavity), by the relative rotation of the two rollers of the shear force, the material will be entered into the tearing, shear to the required particle size by the discharge port discharge.
Double Shaft Shredder Technical Parameters
| number |
Model |
tearing chamber
(mm) |
Toothed Knife Diameter
(mm) |
Number of teeth and knives
(PCS) |
Motor power
(Kw) |
| 1 |
2PGS-10 |
600×360 |
φ200 |
30 |
15-22 |
| 2 |
2PGS-15 |
600×460 |
φ300 |
20 |
30-44 |
| 3 |
2PGS-30 |
1200×460 |
φ300 |
30 |
74-90 |
| 4 |
2PGS-20 |
600×740 |
φ430 |
15 |
44-60 |
| 5 |
2PGS-40 |
1200×740 |
φ430 |
30 |
90-110 |
| 6 |
2PGS-25 |
800×920 |
φ550 |
20 |
60-90 |
| 7 |
2PGS-50 |
1200×920 |
φ550 |
30 |
90-110 |
| 8 |
2PGS-30 |
1200×1006 |
φ650 |
30 |
110-150 |
| 9 |
2PGS-80 |
1800×1006 |
φ650 |
35 |
150-180 |
| 10 |
2PGS-60 |
1200×1510 |
φ800 |
30 |
150-220 |
| 11 |
2PGS-100 |
2400×1510 |
φ800 |
60 |
180-264 |
