High Efficiency Wheeled Sand Washing Machine Low Power Consumption

Name: High Efficiency Wheeled Sand Washing Machine Low Power Consumption
Brand: Huaji
SKU: Huaji
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (169 reviews)

Product Details

Place of Origin: China

Brand Name: Huaji

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:

Product Name:	Auxiliary Equipment	Feature:	Low Power Consumption
Key Selling Points:	High Efficiency	Application:	Crushing Equipment

Product Name:	Auxiliary Equipment
Feature:	Low Power Consumption
Key Selling Points:	High Efficiency
Application:	Crushing Equipment

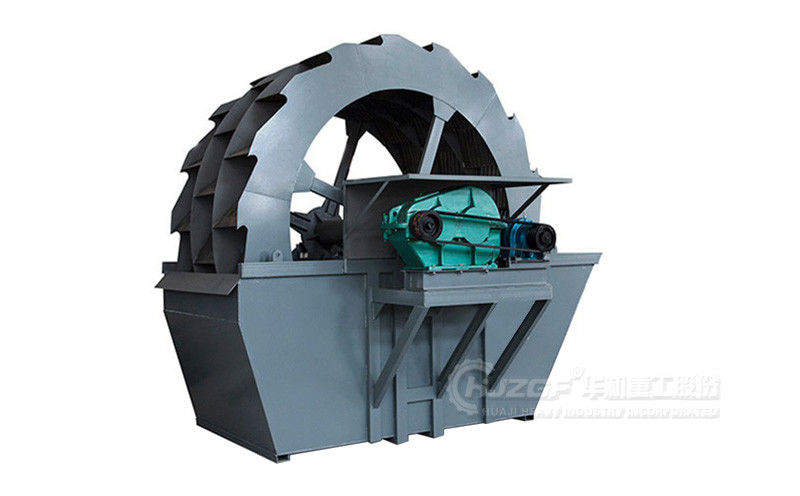

High Efficiency Wheeled Sand Washing Machine Low Power Consumption

Wheeled Sand Washing Machine product description

Wheel sand washer is a kind of high-efficiency sand washing equipment developed by our company after accumulating many years of manufacturing experience, which is composed of shell, washing wheel, reducer and electric motor. It adopts unique sealing structure, fully enclosed oil bath transmission device and adjustable overflow weir plate, which ensures high washing degree and less sand loss, especially the transmission part is isolated from water and sand, so the failure rate of this sand washing machine will be greatly low. Moreover, it has the characteristics of low energy consumption, large handling capacity, saving water resources, no pollution and so on. Therefore, it is the first choice of sand washing equipment for river sand and mechanism sand industry in various regions.

1,Reasonable structure, convenient maintenance, large handling capacity, low power consumption, high washing degree.

2,Novel sealing structure, fully enclosed oil bath transmission device.

3,Adjustable overflow weir plate ensures high efficiency, durability, good cleaning and dewatering effect.

4,The fine grain product produced is stable.

Wheeled Sand Washing Machine working principle

When the wheeled sand washer works, the motor drives the impeller to rotate slowly through the triangle belt, reducer and gear, and the sand enters into the washing tank from the feeding trough, tumbles and grinds with each other under the driving of the impeller, removing the impurities covering the surface of the sand and gravel, and at the same time, destroying the water vapor layer covering the sand particles, which is conducive to the dewatering; and at the same time, water is added to form a strong water current, which will take away the impurities and the small specific gravity of the foreign matters in time and be discharged from the overflowing mouth of the washing tank. At the same time, water is added to form a strong current, which will take away the impurities and small specific gravity foreign matter in time and discharge them from the overflow washing tank. Clean gravel is taken away by the blades, and finally the gravel is poured into the discharge tank from the rotating impeller to complete the cleaning effect of gravel.

Wheeled Sand Washing Machine Technical Parameters

Model	Bucket diameter (mm)	RPM (r/min)	processing capability (t/h)	Motor power (KW)
XS-2200	2200	1-2	20-50	5.5
XS-2600	2600	1-2	30-65	7.5
XS-3000	2900	0.8-1.5	50-100	11
XS-3500	3500	0.8-1.2	80-200	15
