Low Power Consumption Eccentric Vibrating Feeders For Stone Crushing

Name: Low Power Consumption Eccentric Vibrating Feeders For Stone Crushing
Brand: Huaji
SKU: Huaji
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (128 reviews)

Product Details

Place of Origin: China

Brand Name: Huaji

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:

Product Name:	Auxiliary Equipment	Feature:	Low Power Consumption
Key Selling Points:	High Efficiency	Application:	Crushing Equipment

Product Name:	Auxiliary Equipment
Feature:	Low Power Consumption
Key Selling Points:	High Efficiency
Application:	Crushing Equipment

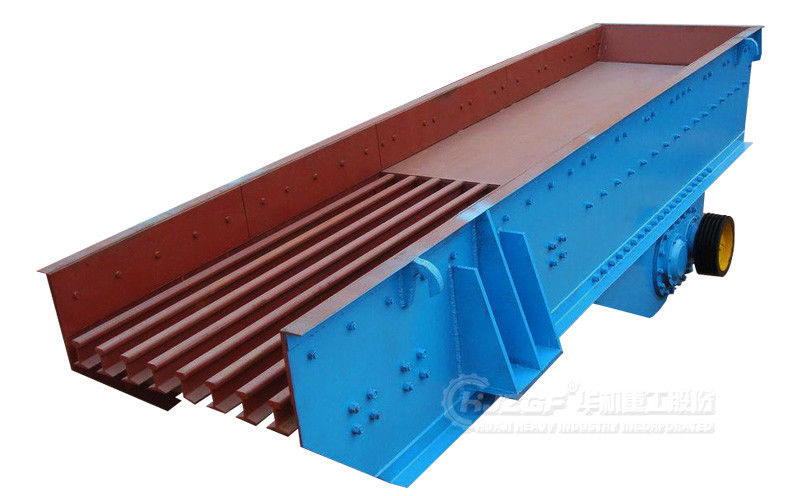

Low Power Consumption Eccentric Vibrating Feeders For Stone Crushing

Eccentric Vibrating Feeders product description

Eccentric vibrating feeder is a kind of feeding device using eccentric block as the source of excitation, which can feed lumpy and granular materials from the silo uniformly, quantitatively and continuously to the conveying equipment, and it has the features of single structural cylinder, smooth vibration, uniform feeding, low noise, good adjustability, no rushing material, etc. It can be widely used in the industries of mining, stone crushing, metallurgy, building materials, chemical industry, ore-dressing, and coal mining.

Eccentric Vibrating Feeders working principle

Eccentric vibrating feeder is to use the eccentric block in the vibrator to rotate to produce centrifugal force, so that the vibrating feeder body and other movable parts of the forced continuous circular or nearly circular motion. The material is thrown continuously with the feeder body on the inclined screen surface, and the material is continuously and evenly sent to the conveying equipment.

Eccentric Vibrating Feeders Technical Parameters

Model	Maximum feed size (mm)	processing capability (t/h)	Motor power (KW)	Chute Size (mm)
PZD0616	260	80	1.5	600×1600
PZD0818	350	100	3	800×1800
PZD0830	400	120	7.5	800×3000
PZD0936	500	150	11	900×3600
PZD1138	580	210	15	1100×3800
PZD1142	580	240	15	1100×4200
PZD1149	580	280	15	1100×4900
PZD1242	600	300	18.5	1200×4200
PZD1349	600	450	22	1300×4900
