Crusher Equipment Feeder Easy Installation Energy Efficiency

Product Details

Place of Origin: China

Brand Name: Huaji

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Payment Terms: L/C, T/T

Get Best Price
Highlight:
Product Name:
Auxiliary Equipment
Feature:
Low Power Consumption
Key Selling Points:
High Efficiency
Application:
Crushing Equipment
Product Name:
Auxiliary Equipment
Feature:
Low Power Consumption
Key Selling Points:
High Efficiency
Application:
Crushing Equipment

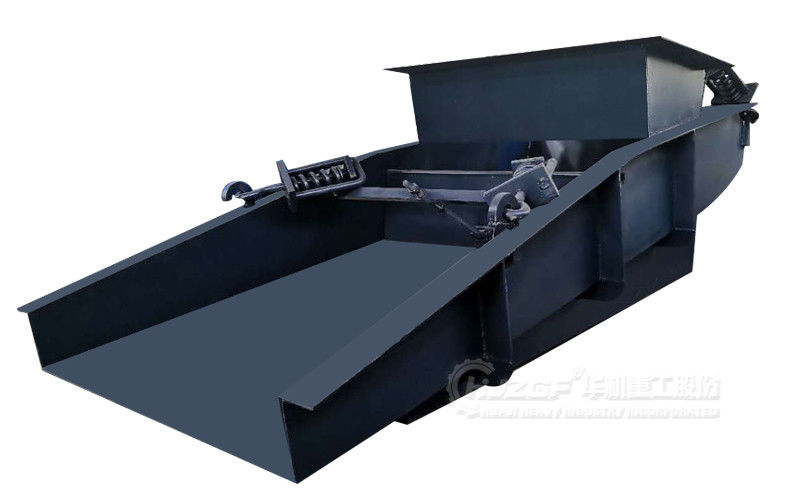

Crusher Equipment Feeder Easy Installation Energy Efficiency

Feeder product description

       The fabricator is composed of fabricator body, adjusting device, movable plate, vibration motor and so on. It is suitable for feeding the lumpy materials sent from the belt conveyor (or feeder) into the inlet of the roller crusher evenly, and making the materials evenly cover the roll surface, forming a material curtain, which can greatly improve the crushing efficiency and crushing granularity of the roller crusher. The fabricator is divided into two types: non-powered and powered, featuring economical and practical, even fabric, no blockage, easy installation, etc. It can be widely used in various large and medium-sized roll crushers.

Feeder working principle

       When the fabricator is working, the movable plate and the main plate are in a closed state, the material is fed into the fabricator by the belt conveyor or feeder, when the material is full of the fabricator, the vibration motor is turned on, and the handwheel is turned so that the adjusting device will drive the movable plate downward to be open, and the material will start to flow out evenly and form a material curtain from the outlet of the fabricator, and then enter the roller crusher evenly.

Feeder Technical Parameters


Model Feed size
(mm)
yield
(t/h)
Inlet Size
(mm)
Outlet Size
(mm)
BL-40 60 6-30 Designed for feed size Follow the Roll Crusher Feeder Design
BL-50 60 10-45
BL-60 80 20-80
BL-80 80 40-120
BL-90 100 60-200
BL-120 100 80-320
BL-160 120 100-480
BL-180 120 120-600
